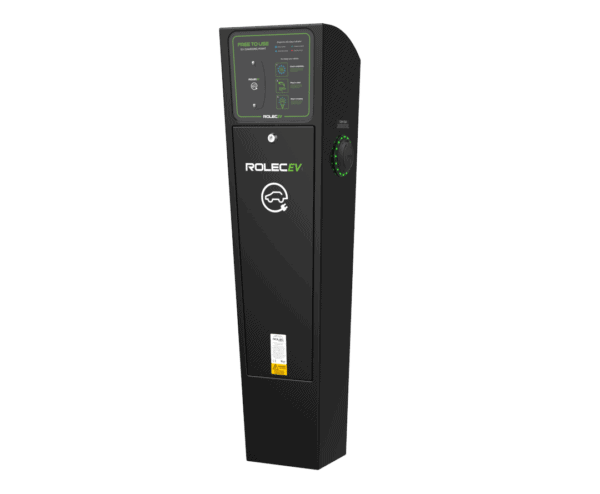

AutoCharge:EV Superfast 22kW, 2way
The AUTOCHARGE:EV Superfast is a heavy duty,hard wearing EV charging pedestal, specifically designed and manufactured for both commercial and public facing environments.
This versatile, future-proof, free-to-use pedestal is available in both 1way or 2way versions, providing Mode 3 superfast charging in 22kW speeds.
- Description
- Additional information
- Specifications
- Downloads
Description
The AUTOCHARGE:EV Superfast is a heavy duty,hard wearing EV charging pedestal, specifically designed and manufactured for both commercial and public facing environments.
This versatile, future-proof, free-to-use pedestal is available in both 1way or 2way versions, providing Mode 3 superfast charging in 22kW speeds.
Product Features
- IEC 61851-1 Mode 3 superfast charging
- Available in 1way & 2way versions
- 22kW (32A) charging speeds
- Type 2 (IEC 62196) 3 phase charging socket(s) c/w security hatchlock(s)
- Upgradable to accommodate various pay-to-charge (PAYG) solutions
- Surface or root mountable
- Switchgear & components behind lockable door
- Built-in AC overload and fault current protection
- Built-in DC sensitive protection
- Built-in LED charging status indicator socket halo(s)
- EV driver can simply park, plug in and charge their vehicle
- Easy to install & maintain
- IP Rated
- UV stabilised
- Corrosion resistant
- Fire retardant
Additional information
| Charging Socket | |
|---|---|
| kW | 22kW |
| Make | Rolec |
ELECTRICAL SPECIFICATIONS
Rated Output – 22 kW
Rated Current – 32A
GENERAL SPECIFICATIONS
Operating Temperature – -30°C to +50°C
Pedestal Material – Bodywork manufactured in heavy duty 1.5mm steel & applied with 45 – 55 microns of zinc primer

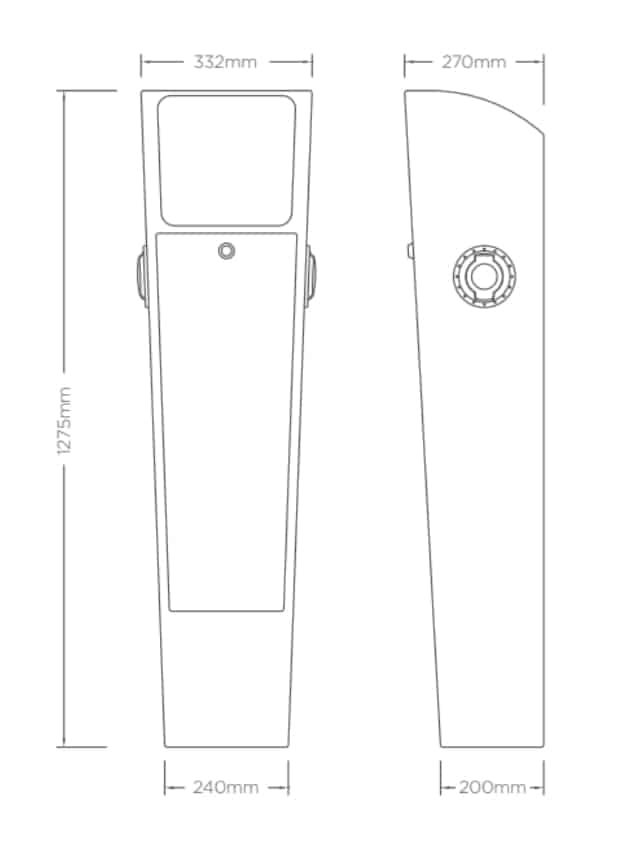

W x H x D – 332mm x 1275mm x 270mm
