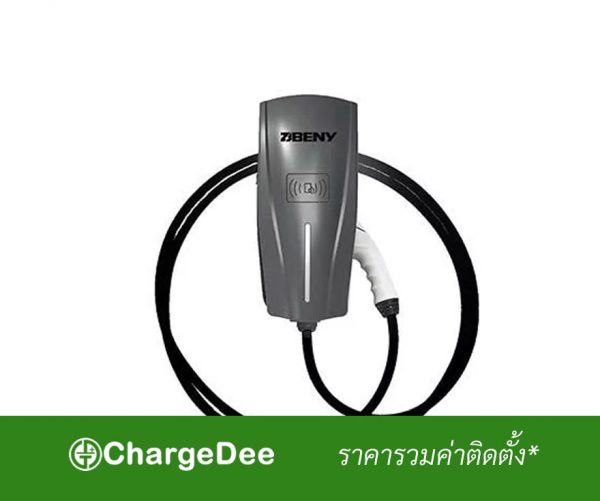

เครื่องชาร์จรถยนต์ไฟฟ้า BENY 7.4kW Tethered Type2

ChargeCheck:EV

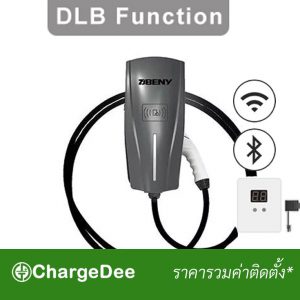

BENY DLB PEN 7.4kW, Socket Type2

฿37,000.00

คุณสมบัติของผลิตภัณฑ์

  • Build-in with overvoltage and under-voltage protection, over-current protection, over
    temperature protection, imperfect earth detection, CP abnormal signal protection and
    type A + DC 6mA
  • Operating temperature range: -25 ℃ ~ +55 ℃
  • With temperature sensor build-in important areas for fire protection
  • With leakage test function, ensure the normal operation of leakage protection
  • The charger has a function of automatic reset after troubleshooting. That means when a charger stop working when an anomaly is detected, the charger will periodically self check whether the anomaly is eliminated. The charger will start to work automatically after ensure the anomaly has been eliminated
  • Without OCPP
รหัสสินค้า: BCP-A2-L หมวดหมู่: , ,
ดูตะกร้าสินค้า

รายละเอียดเพิ่มเติม

BENY EV Charger – 32A, 7.4kW, Tethered Type 2

  • รับประกันผลิตภัณฑ์ 3 ปี
  • Easy for cable storage.
  • The ramp-down stop current charging mode protects the EV batteries.
  • The EV charger can be wall-mounted or pile mounted. There are three wiring ways for the EV charger, bottom entry wiring, Top entry wiring and rear entry wiring. You will need to install the wiring box to make top entry wiring.
  • RFID card or auto-start charging for option. Rated charging current can be set according to different home load conditions. With lightning protection ensure personal safety.
  • Standard: EN IEC 61851-1 IEC 61851-21-2
  • Certificate: CE/UKCA
  • Made by BENY Electric
***** ไปดู หน้าโปรโมชั่น ******

ข้อมูลเพิ่มเติม

Make

BENY
kW

7.2kW
Charging Gun

Charging Socket

Electrical

Charging capacity 1.3kW – 7.4kW

Charge mode Mode 3 (IEC 61851-1)

Output power 1-phase, 230V, 32 A,50-60 Hz

Connector options Fixed cable type 2 plug

Fixed cable length 6m (18 ft)

Cable entry Rear or bottom

Protection and certification

Build-in RCD TYPE A + DC6mA leakage sensor built-in

With cable IP65

Housing fire ratings V0

Operating temperature -25 – +55c

Compliance IEC61851-1, IEC61851-21-2, IEC61000-4, CE EMC EU/2014, CE Low Voltage, EU/2014/35

Certificate CE / UKCA

Connectivity

Authorization Auto-start standard / RFID card option

Status indication LED ring

Mechanical

Housing Polycarbonate

Dimension W169 x H380 x D151 / 201 mm

Mounting Wall or Pole

BENY Datasheet
