STREETSERV:EV 7.2kW

STREETSERV:EV 7.2kW

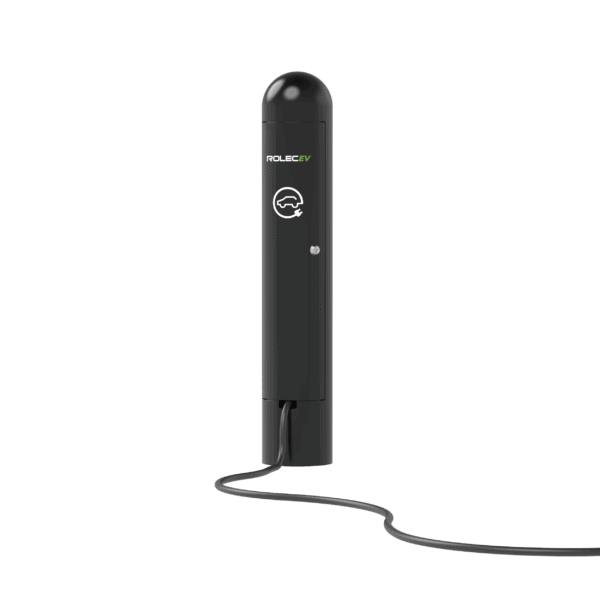

STREETSERV:EV is a robust, hard wearing and vandal resistant EV charging solution in the form of a traditional street furniture post.

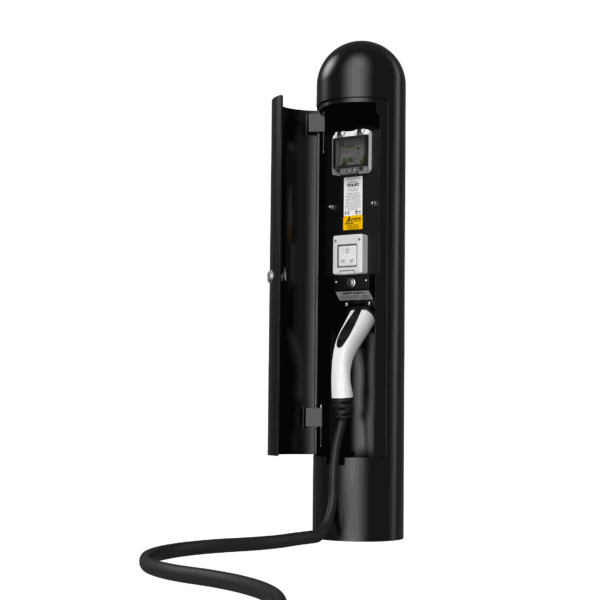

STREETSERV:EV has been specifically designed to be installed in any exposed public facing location – and has proven particularly successful as a private on-street charging solution for EV drivers without access to off-street parking. This post features a Type 2, Mode 3 EV charging socket offering 3.6kW/7.2kW charging speeds, and a 13A

maintenance socket – both of which can be safely locked away while in use behind its heavy-duty steel access door.

Availability: มีสินค้า รหัสสินค้า: EVSS0040 หมวดหมู่: , ,

คำอธิบาย

STREETSERV:EV is a robust, hard wearing and vandal resistant EV charging solution in the form of a traditional street furniture post.

STREETSERV:EV has been specifically designed to be installed in any exposed public facing location – and has proven particularly successful as a private on-street charging solution for EV drivers without access to off-street parking. This post features a Type 2, Mode 3 EV charging socket offering 3.6kW/7.2kW charging speeds, and a 13A

maintenance socket – both of which can be safely locked away while in use behind its heavy-duty steel access door.

Product Features

• Mode 3 (IEC 61851-1) fast charging
• 7.2kW (32A) charging speeds
• Type 2 (IEC 62196) charging socket c/w security hatchlock
• IP55 weatherproof protected 13A socket (Mode 2 charging or maintenance)
• Surface or ground base mounted
• Hinged, lockable socket/switchgear access door
• Door can be closed and locked whilst in use
• Built-in AC overload & fault current protection
• Built-in DC sensitive protection
• Built-in LED charging status indicator
• Easy to install and maintain
• Manufactured to IP54 specifications
• Corrosion resistant & UV stabilised
• Fire retardant

ELECTRICAL SPECIFICATIONS

Rated Output – 7.2kW

Rated Current – 32A

GENERAL SPECIFICATIONS

Operating Temperature  -30°C to +50°C

Unit Material – Heavy-duty steel

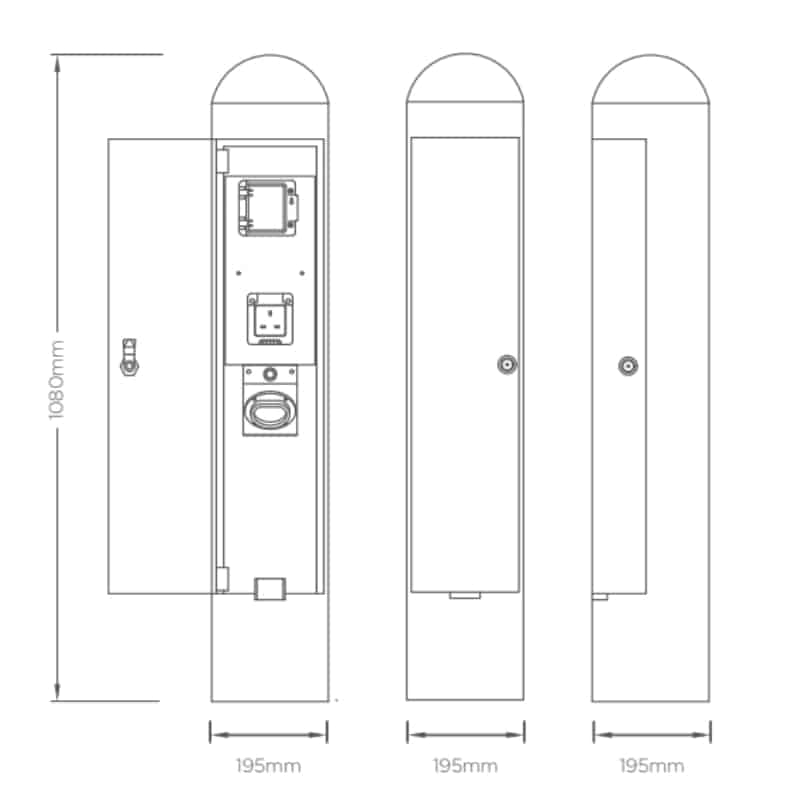

W x H x D – 195mm x 1080mm x 195mm
