BASICCHARGE:EV 7.2kW, 1way

BASICCHARGE:EV 7.2kW, 1way

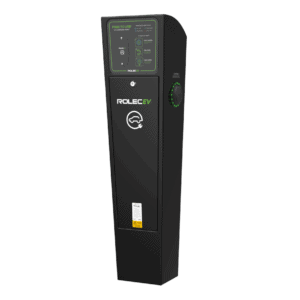

The BASICCHARGE:EV pedestal replicates Rolec’s world-leading Classic utility pedestal, which now boasts over 200,000 units sold worldwide.

This mass produced, tried and tested pedestal is both, an affordable and adaptable EV charging solution. Suitable for a variety of different locations, including: private car parks, offices, factories, hotels, cinemas, leisure centres, shops,warehouses, hospitals, schools, depots – in fact an moderately secure environment.

1way versions, providing Mode 3 fast charging in 7.2kW speeds.

Availability: In stock SKU: EVCL2006 Categories: , ,

Description

The BASICCHARGE:EV pedestal replicates Rolec’s world-leading Classic utility pedestal, which now boasts over 200,000 units sold worldwide.

This mass produced, tried and tested pedestal is both, an affordable and adaptable EV charging solution. Suitable for a variety of different locations, including: private car parks, offices, factories, hotels, cinemas, leisure centres, shops,warehouses, hospitals, schools, depots – in fact an moderately secure environment.

1way versions, providing Mode 3 fast charging in 7.2kW speeds.

Product Features

  • Mode 3 (IEC 61851-1) fast charging
  • 1way versions
  •  7.2kW (32A) charging speeds
  • Type 2 (IEC 62196) charging socket(s) c/w security hatchlock(s)
  • Photocell controlled LED amenity lighting head
  • Surface or root mountable
  • Built-in AC overload and fault current protection
  • Built-in DC sensitive protection

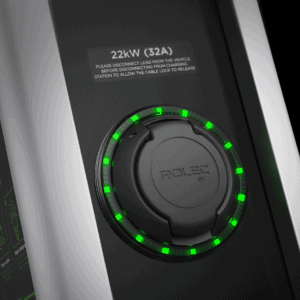

  • Built-in LED charging status indicator socket halo(s)
  • Easy to install & maintain
  • IP rated
  • UV stabilised
  • Corrosion resistant

ELECTRICAL SPECIFICATIONS

Rated Output – 7.2kW

Rated Current – 32A

GENERAL SPECIFICATIONS

Operating Temperature – -30°C to +50°C

Unit Material – High impact resistant aluminium composite outer shell

W x H x D – 205mm x 1130mm x 205mm
