BENY Smart 7.4kW Tethered Type 2

ChargeCheck:EV
BENY Smart 22kW Tethered Type 2

฿43,000.00

คุณสมบัติของผลิตภัณฑ์
  • โมบายแอป มีทั้ง IOS และ Android ตั้งเวลา สต่าร์ท หยุด การชาร์จได้
  • มีกล่อง Dynamic Load Balancing (DLB) และเซนเซอร์วัดกระแส (ครบชุด) ติดตั้งเพื่อปรับเปลี่ยนกระแสไฟฟ้าของการอัดประจุรถยนต์ไฟฟ้าที่สอดคล้องกับกระแสไฟฟ้าที่ระบบจะสามารถจ่ายได้ตลอดเวลา และไม่ทำให้เกิดการโอเวอร์โหลด
  • Build-in with overvoltage and under-voltage protection, over-current protection, overtemperature protection, imperfect earth detection, CP abnormal signal protection andtype A + DC 6mA
  • Operating temperature range: -25 ℃ ~ +55 ℃
  • With temperature sensor build-in important areas for fire protection
  • With leakage test function, ensure the normal operation of leakage protection
  • The charger has a function of automatic reset after troubleshooting. That means when a charger stop working when an anomaly is detected, the charger will periodically self check whether the anomaly is eliminated. The charger will start to work automatically after ensure the anomaly has been eliminated
  • Without OCPP
  • Solar Option เพิ่มกล่อง DLB Solar และเซ็นเซอร์วัดกระแสครบชุด สามารทำงานร่วมกับระบบ Solar cell ได้
SKU: A2N-L หมวดหมู่: , ,
Inquire Us

รายละเอียดเพิ่มเติม

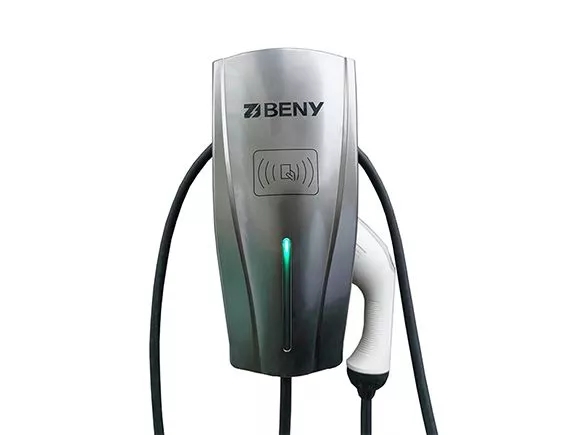

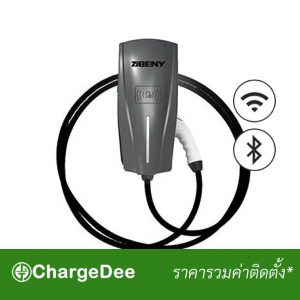

BENY Smart EV Charger With Dynamic Load Balancing – 32A, 7.4kW, Tethered Type 2
  • รับประกันผลิตภัณฑ์ 3 ปี
  • Easy for cable storage
  • The ramp-down stop current charging mode protects the EV batteries.
  • The EV charger can be wall-mounted or pile mounted. There are three wiring ways for the EV charger, bottom entry wiring, Top entry wiring and rear entry wiring. You will need to install the wiring box to make top entry wiring.
  • RFID card or auto-start charging for option. Rated charging current can be set according to different home load conditions. With lightning protection ensure personal safety.
  • Standard: EN IEC 61851-1 IEC 61851-21-2
  • Certificate: CE/UKCA
  • Made by BENY Electric
***** ไปดู หน้าโปรโมชั่น *****

******** ไปดู บทความ DLB ********

Additional information

Make

BENY
kW

7.2kW
Charging Gun

Charging Socket

Electrical
Charging capacity 1.3kW – 7.4kW
Charge mode Mode 3 (IEC 61851-1)
Output power    1-phase, 32 A
Connector options  Fixed cable type 2 plug
Fixed cable length  6m (18 ft)
Cable entry Rear or bottom
Protection and certification
Build-in RCD   TYPE A + DC6mA leakage sensor built-in
With cable        IP65
Housing fire ratings V0
Operating temperature   -25 – +55c
Compliance      IEC61851-1, IEC61851-21-2, IEC61000-4, CE EMC EU/2014, CE Low Voltage EU/2014/35
Certificate CE / UKCA
Mechanical
Housing  Polycarbonate
Dimension   W169 x H380 x D151 / 201 mm
Mounting   Wall or Pole
Connectivity
Authorization    Auto-start standard / RFID card option
Status indication            LED ring
WLAN communication Wi-Fi / Bluetooth 4.2 (NBTC approved)

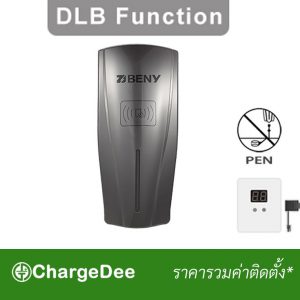

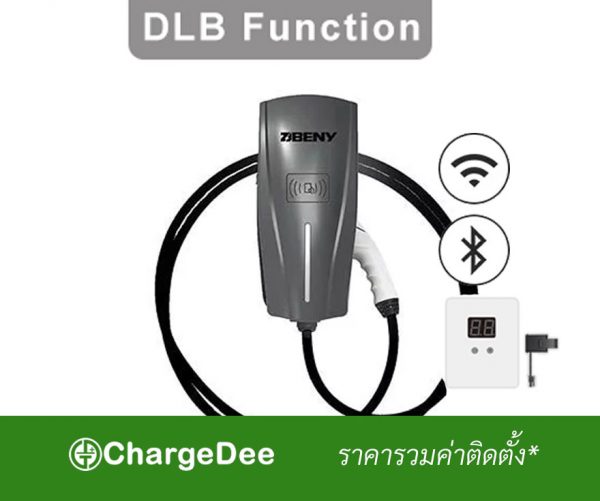

Dynamic Load Balancing
DLB (Dynamic Load Balancing) is available in the BCP series AC EV Charger for home use, when the EV charger is working with other household appliances at the same time, the DLB box can maintain the dynamic balance of the total household current and ensure the safety of electricity to avoid home over load.
Set the Max current value of the main line on the DLB box. The charger will read this current value and automatically adjust the charging current (6A-32A) according to the idle load quota, so that the total household current will not be overloaded due to charging. This function can effectively use the power supply without providing additional power for the charging or home line update.
Smart APP
  • The EV charger can be controlled by smart APP via WIFI or Bluetooth connection
  • One to one binding EV charger by reset the password, prevent the EV charger being stolen
  • View charging data and status
  • Set up various charging configurations, charging current , DLB mode etc.
  • Scheduled charging
  • Firmware update
Safety Information
  • Easy for cable storage.
  • The ramp-down stop current charging mode protects the EV batteries.
  • The EV charger can be wall-mounted or pile mounted. There are three wiring ways for the EV charger, bottom entry wiring, Top entry wiring and rear entry wiring. You will need to install the wiring box to make top entry wiring.
  • RFID card or auto-start charging for option.
  • Rated charging current can be set according to different home load conditions.
  • With lightning protection ensure personal safety.
